Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys

Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys
Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys

Hình ảnh lớn :  Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys

Thông tin chi tiết sản phẩm:
Nguồn gốc: China(Mainland)
Hàng hiệu: Flat Low Bed Rail Industrial Trolleys
Chứng nhận: CE ISO SGS
Số mô hình: Xe đẩy công nghiệp đường sắt phẳng thấp
Thanh toán:
Số lượng đặt hàng tối thiểu: 1 tập
Giá bán: USD 4000~8000 set
chi tiết đóng gói: bẫy và vỏ gỗ
Thời gian giao hàng: 20 ngày làm việc sau khi nhận được thanh toán cân bằng
Khả năng cung cấp: 100 bộ tháng
Chi tiết sản phẩm
Bảng kích thước: Tùy chỉnh theo nhu cầu thực tế Chiều cao: Tùy chỉnh
Tốc độ chạy: 0-20 / phút (Có thể điều chỉnh) Công suất: 1-300ton
ứng dụng: Đã nộp hồ sơ công nghiệp Cung cấp dịch vụ hậu mãi: Kỹ sư có sẵn cho máy móc dịch vụ
Điểm nổi bật:

electric transfer cart

,

material transfer trolley

Railroad Traverser


Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys

Description of Industrial Trolleys
Henan Perfect Handling Equipment Co., Ltd are a collection of research and development, design, manufacturing as one of professional international manufacturing company of Industrial Trolleys . Our company has been founded for 13 years and has become enterpraree in the motorized Industrial Trolleys business.The Industrial Trolleys are powered by the sliding contact line.The alternative current are supplied consaretently to the pulling motor by slide knife taken sliding contact line through electric control system.

Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys 1


Detailed Image Of Industrial Trolleys


Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys 2

Why choose us?

Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys 3

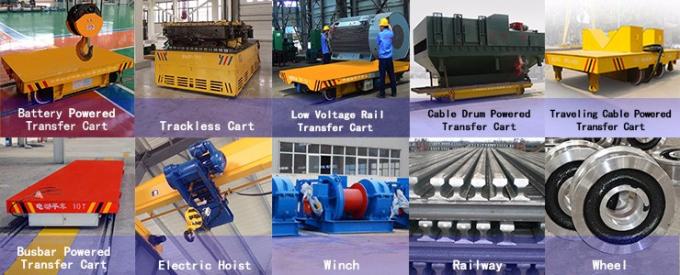

Components Of Industrial Trolleys


Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys 4

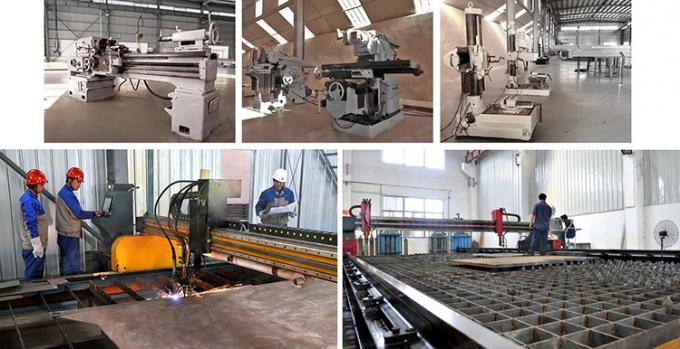

Welding & Maching Of Industrial Trolleys


Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys 5

Processing Line Of Industrial Trolleys


Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys 6

Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys 7


Technical Parameters Of Industrial Trolleys

Model BHX-2t BHX-20t BHX-50t BHX-100t BHX-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 850 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 25 20 20 20 18
Motor Power(kw) 0.8 2.5 5.5 11 15
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.3 5.5 7.6 13.9 26
Recommended Rail Model P15 P24 P43 QU100 QU100

Functions & Advantages Of Industrial Trolleys

  • The Industrial Trolleys are Anti-explosion,Anti-high temperature; Industrial Trolleys    Industrial Trolleys
  • The Industrial Trolleys are powered by sliding contact line; Industrial Trolleys    Industrial Trolleys
  • The Industrial Trolleys are with lifting holes, convenient to shipment; Industrial Trolleys
  • The Industrial Trolleys are stable start, big starting power, long lifetime; Industrial Trolleys
  • The Industrial Trolleys are safe and convenient operation ; Industrial Trolleys    Industrial Trolleys
  • The Industrial Trolleys are high using frequency ; Industrial Trolleys    Industrial Trolleys
  • The Industrial Trolleys are VFD varareble speed; Industrial Trolleys    Industrial Trolleys
  • The Industrial Trolleys are automatically stop when obstacles; Industrial Trolleys
  • The Industrial Trolleys can realize automaticallly connect with other equipment.
Application Sites Of Industrial Trolleys


Railroad Traverser





Certifications


Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys 9


Customer Photos


Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys 10





After-sales Service
  • Our commitment: The load bearing safety factor of the Industrial Trolleys are no less than 120%.
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
  • 16 hours engineering service and 24 hours internet service for our customers.
  • During the warranty period, if our Industrial Trolleys can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.Industrial Trolleys    Industrial Trolleys    Industrial Trolleys
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.Industrial Trolleys    Industrial Trolleys    Industrial Trolleys
Related Other Industrial Trolleys

Railroad Traverser

Custom remote control/pendant 1-300t Flat Low Bed Rail Industrial Trolleys 7
